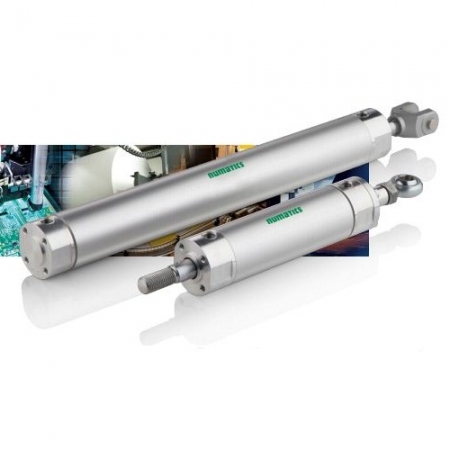

Cylinders & Actuators - Repairable Round Line - Numatics Series 488
The 488 Series is a Repairable Round Line Air Cylinder with more mounting and thread type options than most competitive drop-in replacements, including standard magnets and bumpers as well as optional adjustable cushions. Expertly engineered, this cylinder’s robust design is more reliable than most non-repairable cylinders which makes it ideal for the high cycle rates found in numerous automation applications.
Standard Specifications:
- Action: Double Acting, Single and Double Rod
- Bore: 20 - 80mm
- Stroke: 5 – 1,000mm
- Magnet: Standard
- Switch: Options available for all bore sizes
- Bumpers: Standard
- Adjustable Cushions: Optional
- Port Types: BSPT, NPTF, G and M7
- Mountings: 17 styles available
- Optimal Max. Speed: 1 m/s
Features:
All Full Flow Port Thread Types (BSPT, NPTF, G and M7)
-
Proven, 25% faster than competitive standards
17 Mounting Styles
-
Only repairable cylinder in the industry offering:
- Rear spherical eye adjustable mount which reduces nose seal and bearing wear
- Detachable nose mount for all bore sizes
- Design flexibility as these mounts can be installed on either or both ends of the cylinder
Flush Encapsulated Cushions
-
Cushion adjustments are captive and resistant to vibration
Female and Male Rod End as Standard
-
Allows for rod stud replacement and flexibility in design
- Female rod allows ability to adjust final thread which is important in high speed applications
Available Position Sensing
-
Round body allows for 360° switch mounting
- Sensors can be directly connected to Numatics G3 input modules
Up to 1,000mm of Stroke
-
Achieve maximum linear movement
Heavy Duty Piston Wear Band
-
Industry-leading, proven heavy duty piston wear band that is more than 50% wider than competitive offerings
- Extend cylinder seal life with a wider wear band by absorbing side load
For more information, please contact a Numatics Distributor near you.
