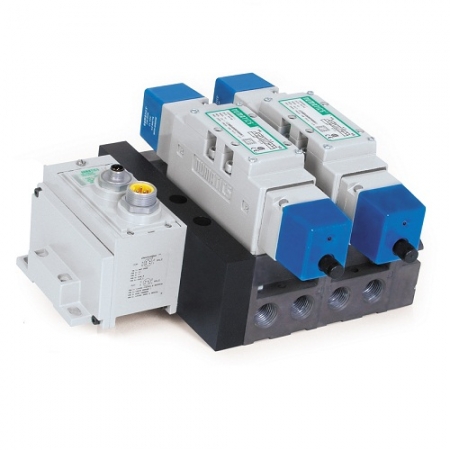

Pneumatic Valve - ISO Valve - 4 Way: 5/2, 5/3 - Numatics Series 5599/2 (Size 1)

Mô tả
- Solenoid Pilot and Direct Solenoid Valve - Manifold - Multipin - Fieldbus - 1/4, 3/8
_addcart
Numatics ISO series valves are high speed, heavy duty valves, designed for general service on all types of automation. Valves comply with ISO standard 5599/2 for valve unit to base interchangeability. Direct solenoid and solenoid pilot actuated models available. They are true multi-purpose valves and employ the patented Numatics spool and sleeve assembly.

Standard Specifications:
  • Cv:
    • 5599/2-1:  1.3
    • 5599/2-2:  2.9
    • 5599/2-3:  5.3
    • 15407-2, 18mm:  0.56
    • 15407-2, 26mm:  1.2
  • Port Sizes:
    • 5599/2-1:  1/4 & 3/8 NPTF
    • 5599/2-2:  3/8 & 1/2 NPTF
    • 5599/2-3:  1/2 & 3/4 NPTF
    • 15407-2, 18mm:  1/8 threaded, 1/4 push in, 6mm, 8mm
    • 15407-2, 26mm:  1/4, 3/8, 8mm, 10mm
  • 5 ported, 4-way, 2 and 3 position, spool & sleeve
  • Flow Capacity:
    • 5599/2-1:  60.1 SCFM @ 80 PSIG / 1280 NI/m @ 6 bar
    • 5599/2-2:  134 SCFM @ 80 PSIG / 2857 NI/m @ 6 bar
    • 5599/2-3:  245 SCFM @ 80 PSIG / 5222 NI/m @ 6 bar
  • Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
  • Pilot Pressure Range: 15 to 125 PSIG / 1 to 8.6 bar
  • Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C

Features:

  • Fieldbus Electronics and I/O Capable
  • Direct solenoid and solenoid air pilot actuated
  • Conforms to ISO standards 5599/2 & 15407-2
  • AC or DC
  • NEMA 4/IP65
