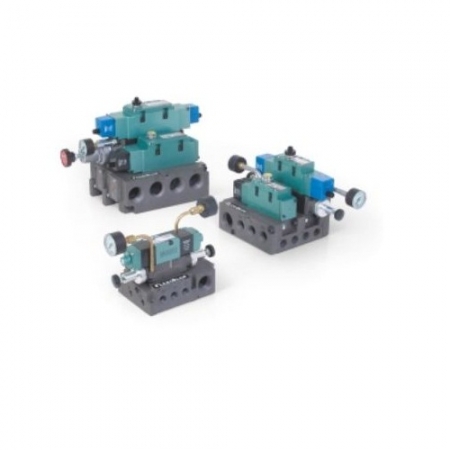

Pneumatic Valve - Automotive - 4 Way: 5/2, 5/3 - Numatics Series 075

Mô tả
- Direct Solenoid Pilot Valve, Manifold - Discrete - 1/8, 1/4
_addcart

The Numatics 75, 125, and 250 Automotive Series valves comply with automotive interchangeable and S.A.E. industrial standards. These are high speed, heavy duty valves designed for general service on all types of automation. Manifold or base mounted.

Standard Specifications:

  • 5 ported, 2 and 3 position, 4-way, spool & sleeve
  • 75 Series:
    • Cv: 0.8 to 1.0
    • Port Sizes: 1/8, 1/4 NPTF
    • NEMA 4/IP65
  • 125 Series:
    • Cv: 1.8 to 2.3
    • Port Sizes: 1/4, 3/8, 1/2 NPTF
    • Low wattage 24 vdc coils
  • 250 Series:
    • Cv: 4.4 to 5.8
    • Port Sizes: 3/8, 1/2, 3/4, 1 NPTF
    • Low wattage 24 vdc coils

Features:

  • Comply with automotive interchangeable standards
  • Plug-in solenoid with indicator light
  • For lubricated or unlubricated service
  • 75 Series:
    • Direct solenoid actuated
    • Sub-base mounted
    • Integral regulators available
    • Integral speed controls available
  • 125 & 250 Series:
    • Solenoid air pilot or direct acting
    • Color identified solenoids for AC or DC
    • Surge protecting bridge rectifier in coil standard for DC application
